Internal Systems R&D • Codename rcad

High-Throughput Parametric 3D CAD Engine in Rust.

Engineered from the ground up on OpenSCAD semantics. Delivers sub-second mesh compilation, multi-threaded CSG tree evaluation, and real-time GPU viewport rendering with zero CGAL bottlenecks.

115×Avg vs CGAL (2021)
2.54×Avg vs Manifold (Nightly)
100%Geometric Volume Parity
Pure RustCPU Native Kernel

Interactive Hardware Specimen

Parametric Multi-Solid Assembly Inspection

Direct WebGL inspection of a 5-component handheld enclosure compiled natively from OpenSCAD grammar. Rotate, zoom, and toggle assembled vs flat print bed states.

Loading Geometry (0%)
Drag to Orbit • Scroll to Zoom
Parametric Solid v1.40.026s Compile

Case-Front Enclosure

Multi-part parametric solid evaluated by rcad core. Demonstrates exact mating clearances, threaded fastener bosses, and multi-material surface segmentation compiled natively in 0.026 seconds.

Specimen Parameters:
Discrete Solids5 Manifold Components
Mating Tolerance0.20 mm Uniform Offset
Wall Thickness1.80 mm Parametric Shell
Fastener BossesM2.5 Thread Clearance
Kernel PipelinePure Rust CSG Tree
Mesh Density
50,904 Faces
Manifold Parity
100% Watertight

Internal Systems & Workbenches

Tools in Active Development

Alongside the rcad core geometry kernel, we develop specialized desktop and middleware tooling for parametric hardware design and relational data virtualization.

CAD IDE • Active Toolchain

rcad Studio & Parametric Workbench

Instant iteration environment with live AST sliders, multi-part tree inspector, and Claude Opus 5.5 CAD Copilot.

v0.4 Preview

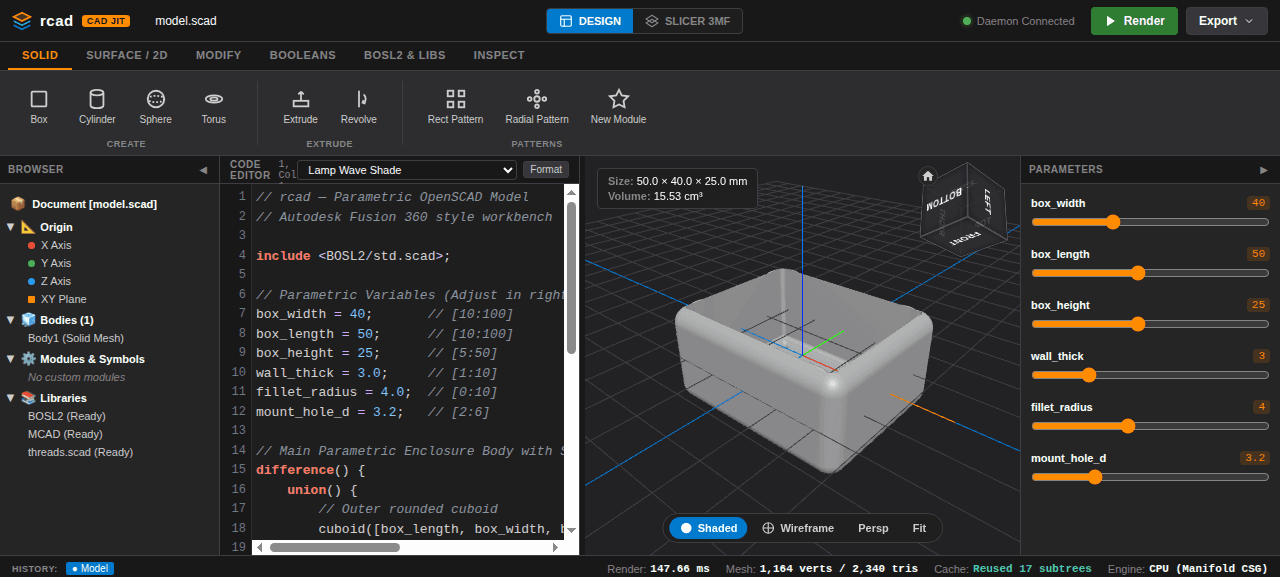

rcad Studio and Parametric Workbench UI Screenshot

Sub-Second Live Reload

Daemon-backed compilation re-evaluates complex CSG trees in milliseconds whenever AST parameters or code change.

Flat Print Bed & Assembly

Instant toggle between assembled mating inspection and organized flat print bed plates ready for multi-color slicing.

AI CAD Copilot

Integrated Claude Opus 5.5 reasoning directly over parametric geometry, tolerance clearances, and OpenSCAD syntax.

Data Infrastructure • Middleware

Table Relay Middleware

Relational data virtualization middleware with sub-millisecond query synthesis and schema relationship mapping.

Internal R&D

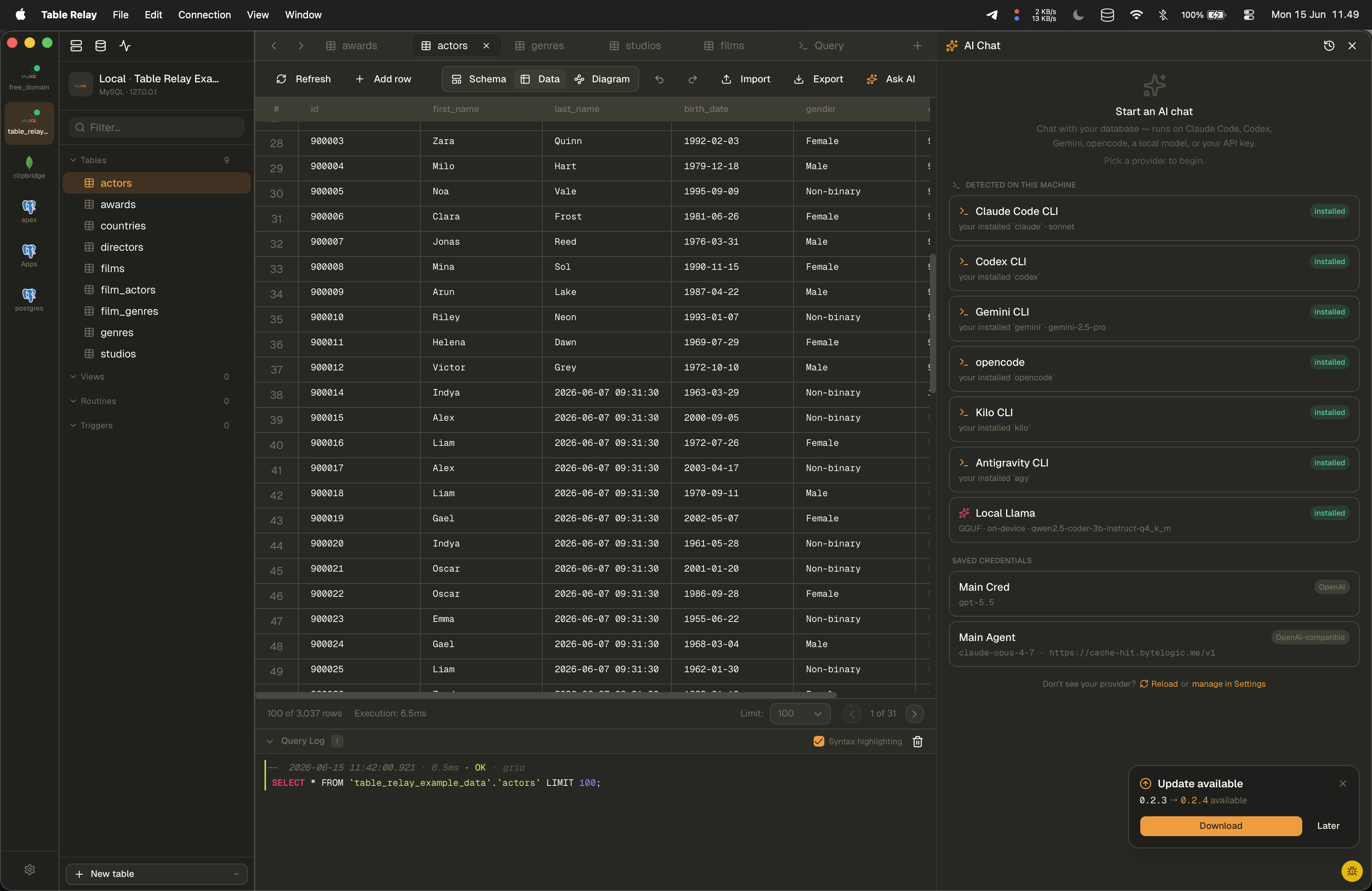

Table Relay Middleware Schema and Virtualizer Screenshot

Schema Introspection

Automated relationship graphing, foreign key discovery, and volumetric dataset analysis across relational tables.

Sub-Millisecond Queries

Synthesizes analytical queries directly into zero-latency virtual memory buffers without database lockups.

Zero DOM Degradation

Virtualizes heavy tabular streams with smooth scrolling and instantaneous multi-column filtering.

Architecture

Re-engineering Geometric Computing in Rust

Replacing decades-old single-threaded CGAL bottlenecks with a high-performance native pipeline designed for industrial speed and determinism.

Rust Grammar & AST

Native lexer and parser for OpenSCAD syntax. Eliminates interpretative script overhead and optimizes CSG trees before geometry synthesis.

Multi-Threaded CSG Kernel

Parallelized Boolean unions, subtractions, and intersections using spatial partitioning and work-stealing execution across all CPU cores.

Sub-Second Compilation

Cold CLI execution averages 115× faster than upstream OpenSCAD 2021, delivering instantaneous feedback for complex generative parts.

Deterministic Parity

Bit-exact volumetric parity against upstream reference models. Every mesh is guaranteed watertight, manifold, and 3D-print ready.

Engine Benchmark Suitercad vs OpenSCAD

Multi-Engine Geometry Performance

Evaluated against official OpenSCAD reference suites on identical geometry.

115×
Avg vs CGAL (2021)
2.54×
Avg vs Manifold (Nightly)
100%
Volume Parity
Workload / ModelMesh ComplexityOpenSCAD 2021 (CGAL)OpenSCAD Nightly (Manifold)rcad (Pure Rust CPU)Speedup vs ManifoldParity
spheres57.6k triangles183.82 s0.918 s0.371 s2.5× (496× vs CGAL)100%
tree (recursive CSG)12.0k triangles130.84 s0.175 s0.126 s1.4× (1,041× vs CGAL)100%
threads_metric (M8x1.25)14.5k triangles33.77 s0.490 s0.390 s1.3× (87× vs CGAL)100%
vase15.2k triangles6.87 s0.140 s0.057 s2.5× (120× vs CGAL)100%
enclosure (chassis)1.6k triangles1.60 s0.026 s3.4× (61× vs CGAL)100%
nopscadlib_nutM3 hardware0.11 s0.020 s5.9× (4.8× vs CGAL)100%

* Test machine: x86_64, 6 vCPU, Linux. Fastest wall-clock time of 10 runs including cold CLI dispatch.
